CB Cradle

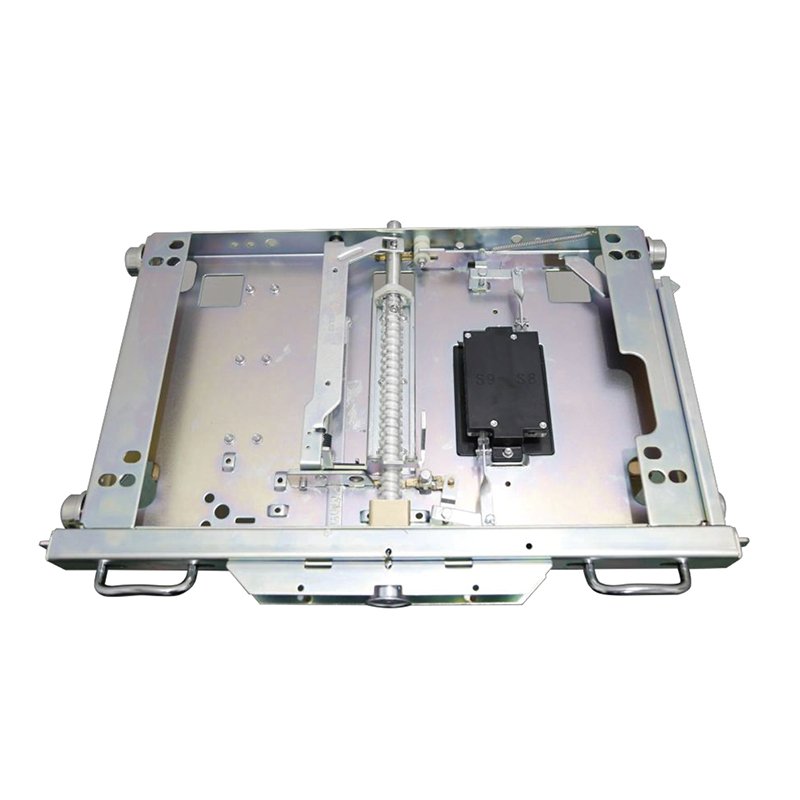

Circuit Breaker Cradle (VCB Trolley) for primary metal-clad switchgear. Provides mobile mounting and electrical connection for vacuum circuit breakers within the switchgear compartment. Available in standard widths of 500mm, 650mm, 800mm, and 1000mm.
Technical Parameters
| Parameter | Value |
|---|---|
| Type | VCB Trolley / CB Cradle |
| Standard Widths | 500mm, 650mm, 800mm, 1000mm |
| Application | Primary metal-clad switchgear |
| Customization | Available upon drawing submission |
Key Features
- Standard widths: 500mm, 650mm, 800mm, 1000mm
- Custom sizes available upon technical drawing submission
- Mobile mounting for easy VCB insertion and removal
- Reliable electrical connections in test and service positions
- Comprehensive mechanical interlocking for safety
For detailed specifications and custom solutions, please contact our team.
