RMU Circuit Breaker

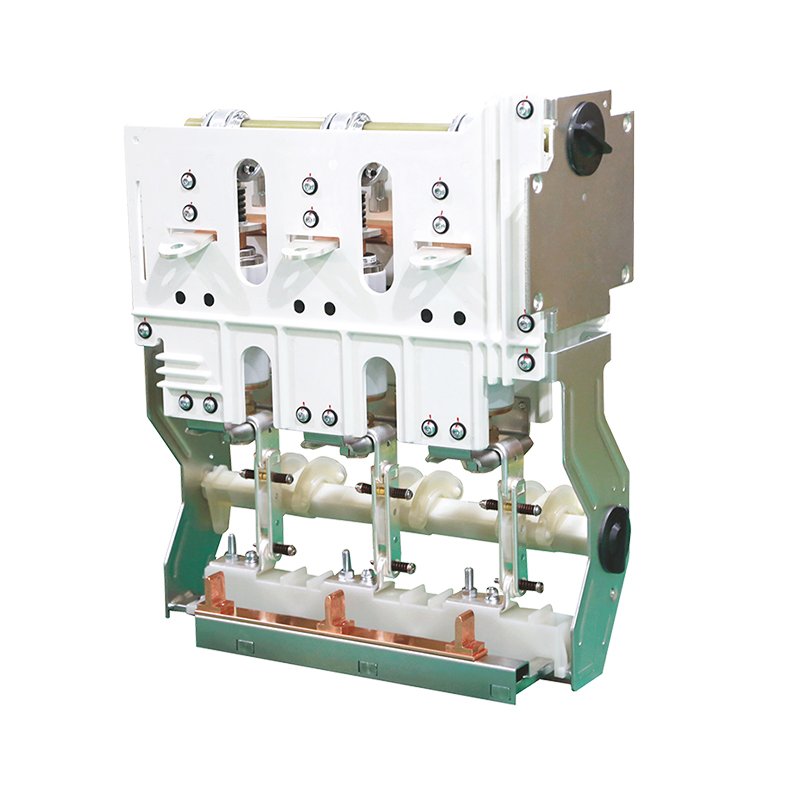

The SPFV-12D/T630 Vacuum Circuit Breaker is designed specifically for 12 kV SF6 gas-insulated Ring Main Units (RMUs). It integrates three-position functionality: circuit breaking (vacuum interrupter), isolation (disconnector), and earthing (earthing switch). Uses clamp-type structural design to enhance reliability and safety.
Technical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 12 kV |
| Rated Current | 630 A |
| Standards | GB/T 11022-2020, GB 1984 |
| Mechanical Endurance (VCB) | ≥ 10,000 operations |
| Mechanical Endurance (Disconnector/ES) | ≥ 3,000 operations |
| Ambient Temperature | -25°C to +50°C |
| Seismic Resistance | ≤ Grade 8 |
Key Features
- Integrates circuit breaking, isolation, and earthing in one compact unit
- Clamp-type structural design for enhanced reliability and safety
- Reliable short-circuit current interruption capability
- Maintenance-free operation with extended service life
- Load current switching plus fault current breaking capability
For detailed specifications and custom solutions, please contact our team.
